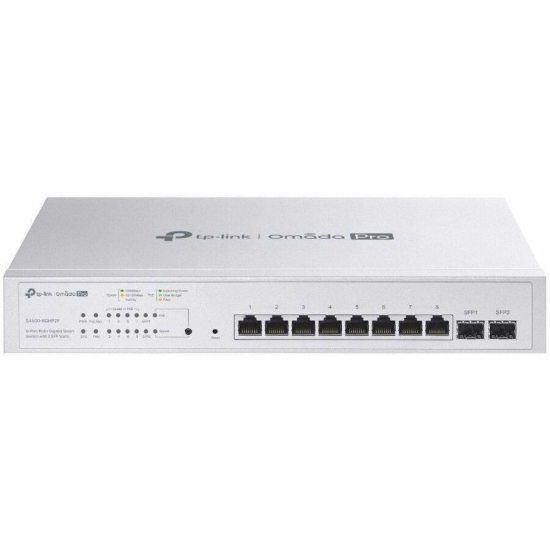

Tp-Link Omada Pro 8-Port Smart Switch, Poe+(8), SFP(2),5YR

The TP-Link Omada Pro 8-Port PoE+ Gigabit Smart Switch is a powerful and flexible Layer 2 smart managed switch designed for professional networking environments requiring reliable PoE connectivity, intelligent management, and scalable network infrastructure.

Equipped with 8 Gigabit PoE+ ports compliant with IEEE 802.3af/at standards and 2 Gigabit SFP uplink slots, this switch provides high-speed wired connectivity for wireless access points, IP cameras, VoIP phones, surveillance systems, and other PoE-enabled devices. With a total 150W PoE power budget and up to 30W output per port, the switch supports efficient deployment of modern network devices across business and enterprise environments.

The switch supports centralised cloud management through the Omada Pro Controller platform and Omada mobile app, enabling remote monitoring, configuration, and network management from virtually anywhere. It also supports standalone management through web GUI, CLI, SNMP, and RMON interfaces.

Advanced networking features including VLAN, static routing, ACL security policies, IP-MAC-Port Binding, IP Source Guard, and intelligent anomaly detection help enhance network performance, security, and operational reliability.

Designed for flexible installation, the switch supports both desktop and rackmount deployment and includes mounting accessories in the box. Its compact form factor and enterprise-grade management capabilities make it ideal for SMBs, schools, hospitality venues, retail environments, and professional network infrastructures.

Key Features:

• 8 Gigabit PoE+ Ethernet ports
• 2 Gigabit SFP uplink slots
• 150W total PoE power budget
• Up to 30W PoE output per port
• Omada Pro cloud management support
• Layer 2 smart managed switch
• Static routing support
• Advanced VLAN and ACL management
• IP-MAC-Port Binding security
• Intelligent anomaly detection
• Rackmount and desktop installation support
• Enterprise-grade network management
• 5-year warranty coverage

Specifications:

• Product Type:
  • Smart Managed PoE+ Switch
• Model:
  • S4500-8GHP2F
• Brand: TP-Link

Interfaces

• Ports:
  • 8 × Gigabit 802.3af/at PoE+ Ports
• Uplink Ports:
  • 2 × Gigabit SFP Slots

Management

• Managed:
  • Yes
• Cloud Management:
  • Supported via Omada Pro Controller
• Omada App Support:
  • Yes
• Standalone Management:
  • Web GUI
  • CLI
  • SNMP
  • RMON

Performance

• Switching Capacity:
  • 20Gbps
• Static Routing:
  • 32 IPv4/IPv6 Static Routes

PoE

• PoE Standard:
  • IEEE 802.3af/at
• PoE Ports:
  • 8
• Total PoE Budget:
  • 150W
• Maximum PoE Output Per Port:
  • 30W

VLAN & Security

• VLAN Support:
  • MAC VLAN (12 Entries)
• ACL Support:
  • Time-based ACL
  • MAC ACL
  • IP ACL
  • Combined ACL
• Security Features:
  • IP-MAC-Port Binding
  • IP Source Guard
  • DoS Defend
  • Static/Dynamic/Permanent Port Security

Advanced Features

• Intelligent Anomaly Detection
• Automatic Device Discovery
• Intelligent Network Monitoring
• Unified Configuration
• Abnormal Event Warnings
• Batch Configuration

Design & Mounting

• Fan Quantity:
  • 1
• Mounting Options:
  • Rackmount
  • Desktop
• Dimensions:
  • 294 × 180 × 44 mm

In The Box

• S4500-8GHP2F Switch
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

Warranty

• Warranty:
  • 5 Years
