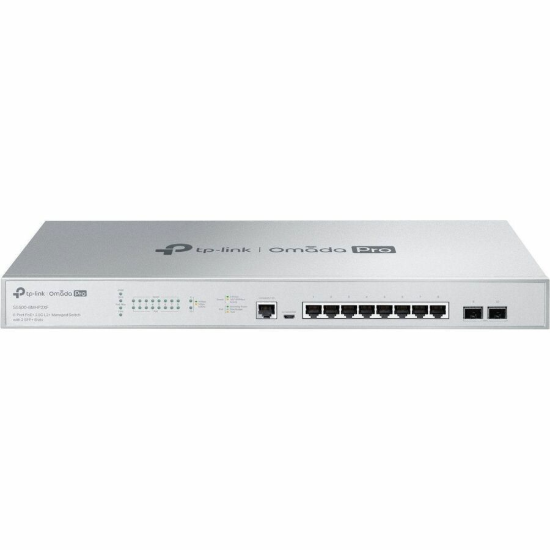

Tp-Link Omada Pro 8-Port Managed L2+ Switch, 2.5G Poe+(8), SFP+(2), 1U, 5YR

The TP-Link Omada Pro 8-Port PoE+ 2.5G L2+ Managed Switch is a high-performance enterprise networking solution designed for demanding business environments requiring multi-gigabit connectivity and advanced power delivery. Equipped with eight 2.5 Gigabit PoE+ RJ45 ports and two 10G SFP+ uplink slots, this switch provides the bandwidth and flexibility needed for modern Wi-Fi 6/6E access points, IP surveillance systems, NAS storage, VoIP deployments, and high-speed workstation connections.

Supporting IEEE 802.3af/at PoE+ standards with a substantial 240W PoE power budget, the switch can efficiently power multiple high-performance devices while simplifying cabling and deployment. The 10G SFP+ uplink ports ensure ultra-fast backbone connectivity for aggregation and server infrastructure.

Integrated into the Omada Pro ecosystem, the switch supports centralised cloud management via the Omada Pro Controller and Omada mobile app, enabling streamlined network administration, monitoring, and remote management across enterprise deployments.

Advanced Layer 2+ capabilities including static routing, VLAN segmentation, ACL security controls, ERPS redundancy protection, QoS optimisation, and intelligent network monitoring provide secure, reliable, and scalable network performance for growing organisations.

Its 1U rackmount design makes it ideal for deployment in enterprise server rooms, SMB networks, retail environments, hospitality venues, educational institutions, and surveillance infrastructure.

Key Features:

• 8× 2.5G PoE+ RJ45 ports
• 2× 10G SFP+ uplink slots
• 240W total PoE power budget
• IEEE 802.3af/at PoE+ compliant
• Layer 2+ managed enterprise switch
• Omada Pro cloud management support
• Static routing functionality
• Advanced VLAN and ACL security
• ERPS redundancy protection
• Intelligent anomaly detection
• Rackmount 1U form factor
• High-speed 80Gbps switching capacity
• 5-year manufacturer warranty

Specifications:

• Product Type:
  • Layer 2+ Managed 2.5G PoE+ Switch
• Model:
  • S5500-8MHP2XF
• Brand: TP-Link

Interfaces

• Ports:
  • 8 × 100 Mbps / 1 Gbps / 2.5 Gbps RJ45 Ports (All support PoE+)
• Uplink Ports:
  • 2 × 10G SFP+ Slots
• Console Ports:
  • 1 × RJ45 Console Port
  • 1 × Micro-USB Console Port

Management

• Managed:
  • Yes
• Cloud Management:
  • Supported via Omada Pro Controller
• Omada App Support:
  • Yes
• Management Options:
  • Cloud Management
  • Web GUI
  • CLI
  • SNMP

Performance

• Switching Capacity:
  • 80Gbps
• Static Routing:
  • 48 Static Routes

PoE

• PoE Standard:
  • IEEE 802.3af/at compliant
• PoE Ports:
  • 8 PoE+ Ports
• Total PoE Budget:
  • 240W

VLAN & QoS

• VLAN Support:
  • MAC VLAN: 256 Entries

Security

• ACL Support:
  • MAC ACL
  • IP ACL
  • Combined ACL
  • IPv6 ACL
  • Time-based ACL
• Security Features:
  • IP-MAC-Port Binding
  • DoS Defend
  • DHCP Filter
  • Static/Dynamic Port Security

Advanced Features

• Intelligent Anomaly Detection
• L2PT (Layer 2 Protocol Tunneling)
• 802.3ah Ethernet Link OAM
• Device Link Detect Protocol (DLDP)
• PPPoE ID Insertion
• Ethernet Ring Protection Switching (ERPS)

Design & Installation

• Fan Quantity:
  • 2
• Mounting:
  • Rack Mountable
• Dimensions:
  • 440 × 180 × 44 mm

In The Box

• S5500-8MHP2XF Switch
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

Warranty

• Warranty:
  • 5 Years
