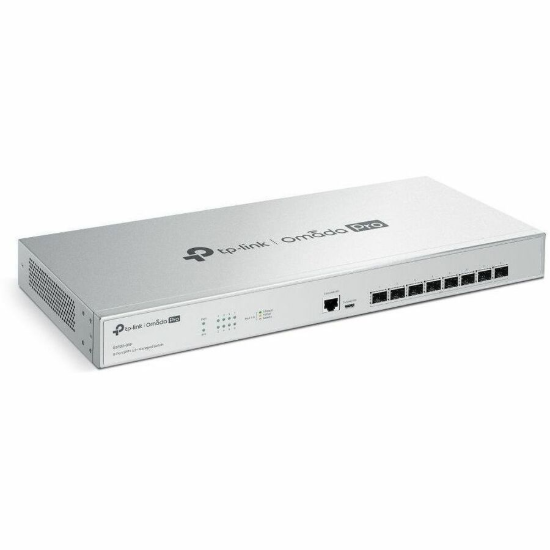

Tp-Link Omada Pro 8-Port Managed 10G L2+ Switch, SFP+(8), 1U, 5YR

The TP-Link Omada Pro 8-Port SFP+ L2+ Managed Switch is a high-performance enterprise networking solution designed for ultra-fast fibre connectivity and advanced network management. Featuring eight dedicated 10GE SFP+ slots, this switch is ideal for aggregation layers, server connectivity, NAS environments, enterprise backbones, and high-speed fibre infrastructure deployments.

With a powerful 160Gbps switching capacity, the switch delivers low-latency, high-bandwidth performance for demanding business applications including virtualisation, storage networking, IP surveillance backbones, and multi-site enterprise environments.

Integrated into the Omada Pro ecosystem, the switch supports centralised cloud management through the Omada Pro Controller and Omada mobile app, enabling streamlined configuration, remote monitoring, and scalable network administration.

Advanced Layer 2+ capabilities such as static routing, VLAN segmentation, ACL security policies, ERPS redundancy protection, QoS optimisation, and intelligent anomaly detection help ensure secure, stable, and highly available network operations.

Its fanless design provides silent operation, making it suitable for office environments, server rooms, educational institutions, and enterprise edge deployments where quiet operation is essential.

Key Features:

• 8× 10GE SFP+ fibre ports
• High-speed 160Gbps switching capacity
• Layer 2+ managed enterprise switch
• Omada Pro cloud management support
• Static routing functionality
• Advanced VLAN and ACL security features
• ERPS redundancy protection
• Intelligent anomaly detection
• Silent fanless operation
• Rackmount 1U form factor
• Centralised cloud management support
• Enterprise-grade fibre aggregation solution
• 5-year manufacturer warranty

Specifications:

• Product Type:
  • Layer 2+ Managed 10G SFP+ Switch
• Model:
  • S5500-8XF
• Brand: TP-Link

Interfaces

• Ports:
  • 8 × 10GE SFP+ Slots
• Console Ports:
  • 1 × RJ45 Console Port
  • 1 × Micro-USB Console Port

Management

• Managed:
  • Yes
• Cloud Management:
  • Supported via Omada Pro Controller
• Omada App Support:
  • Yes
• Management Options:
  • Cloud Management
  • Web GUI
  • CLI
  • SNMP

Performance

• Switching Capacity:
  • 160Gbps
• Static Routing:
  • 48 Static Routes

VLAN & QoS

• VLAN Support:
  • Max. 4K VLAN Groups

Security

• ACL Support:
  • Time-based ACL
  • MAC ACL
  • Combined ACL
  • IPv6 ACL
  • ACL Apply to Port/VLAN
• Security Features:
  • IP-MAC-Port Binding
  • DoS Defend
  • DHCP Filter
  • Static/Dynamic Port Security
  • Broadcast/Multicast/Unicast Storm Control

Advanced Features

• Intelligent Anomaly Detection
• L2PT (Layer 2 Protocol Tunneling)
• 802.3ah Ethernet Link OAM
• Device Link Detect Protocol (DLDP)
• PPPoE ID Insertion
• Ethernet Ring Protection Switching (ERPS)

Design & Installation

• Fan Design:
  • Fanless
• Mounting:
  • Rack Mountable
• Dimensions:
  • 440 × 180 × 44 mm

In The Box

• S5500-8XF Switch
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

Warranty

• Warranty:
  • 5 Years
