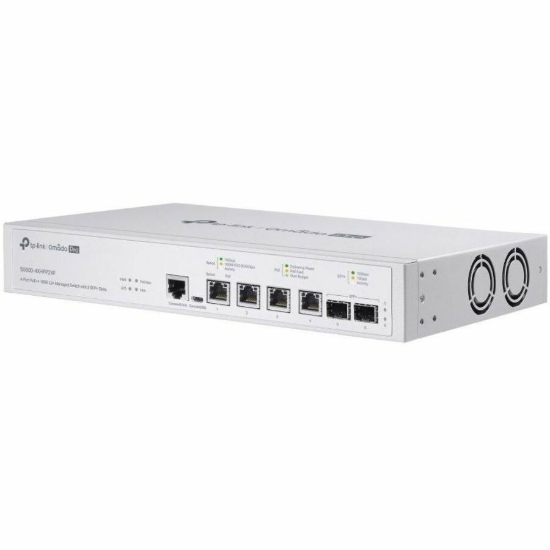

Tp-Link Omada Pro 4-Port Managed 10G L2+ Switch, 10G Poe++(4), SFP+(2), 1U(13"), 5YR

The TP-Link Omada Pro 4-Port PoE++ 10GE L2+ Managed Switch is a compact yet powerful enterprise networking solution engineered for high-bandwidth environments and advanced PoE deployments. Featuring four multi-gigabit 10GE PoE++ RJ45 ports and two 10G SFP+ uplink slots, this switch is ideal for supporting modern Wi-Fi 6/6E/7 access points, IP cameras, NAS systems, workstations, and high-speed backbone connections.

Supporting IEEE 802.3af/at/bt PoE standards with a substantial 200W PoE budget, the switch can power demanding devices such as PTZ surveillance cameras, high-performance wireless access points, and advanced smart building infrastructure while simplifying installation and cable management.

Integrated with the Omada Pro ecosystem, the switch enables centralised cloud management through the Omada Pro Controller and Omada mobile app. It also supports standalone management through Web GUI, CLI, SNMP, and console interfaces for flexible administration across enterprise networks.

Advanced Layer 2+ networking capabilities including static routing, ACL security controls, VLAN segmentation, ERPS redundancy protection, QoS optimisation, and intelligent monitoring features ensure secure, stable, and high-performance operation in business-critical environments.

Its compact 13-inch rackmount form factor allows flexible deployment in network cabinets, server rooms, retail environments, hospitality installations, and enterprise edge networking applications.

Key Features:

• 4× 10GE multi-gigabit PoE++ RJ45 ports
• 2× 10G SFP+ uplink slots
• Supports 100M / 1G / 2.5G / 5G / 10G Ethernet speeds
• 200W total PoE power budget
• IEEE 802.3af/at/bt PoE++ compliant
• Layer 2+ managed enterprise switch
• Omada Pro cloud management support
• Static routing functionality
• Advanced VLAN and ACL security features
• ERPS redundancy protection
• Intelligent anomaly detection
• Rackmount and desktop deployment support
• Compact 13-inch form factor
• 5-year manufacturer warranty

Specifications:

• Product Type:
  • Layer 2+ Managed 10GE PoE++ Switch
• Model:
  • S5500-4XHPP2XF
• Brand: TP-Link

Interfaces

• Ports:
  • 4 × 100/1000/2500/5000/10000 Mbps PoE++ RJ45 Ports
• Uplink Ports:
  • 2 × 10G SFP+ Slots
• Console Ports:
  • 1 × RJ45 Console Port
  • 1 × Micro-USB Console Port

Management

• Managed:
  • Yes
• Cloud Management:
  • Supported via Omada Pro Controller
• Omada App Support:
  • Yes
• Management Options:
  • Cloud Management
  • Web GUI
  • CLI
  • SNMP

Performance

• Switching Capacity:
  • 120Gbps
• Static Routing:
  • 48 Static Routes

PoE

• PoE Standard:
  • IEEE 802.3af/at/bt Type 3
• PoE Ports:
  • 4 Ports
• Total PoE Budget:
  • 200W

VLAN & QoS

• VLAN Support:
  • MAC VLAN: 30 Entries

Security

• ACL Support:
  • Time-based ACL
  • MAC ACL
  • IP ACL
  • Packet Content ACL
• Security Features:
  • IP-MAC-Port Binding
  • IPv6-MAC-Port Binding
  • Static/Dynamic Port Security
  • Broadcast/Multicast/Unicast Storm Control

Advanced Features

• Intelligent Anomaly Detection
• L2PT (Layer 2 Protocol Tunneling)
• 802.3ah Ethernet Link OAM
• Device Link Detect Protocol (DLDP)
• PPPoE ID Insertion
• Ethernet Ring Protection Switching (ERPS)

Design & Installation

• Fan Quantity:
  • 2
• Mounting:
  • Rack Mountable / Desktop
• Dimensions:
  • 294 × 180 × 44 mm

In The Box

• S5500-4XHPP2XF Switch
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

Warranty

• Warranty:
  • 5 Years
