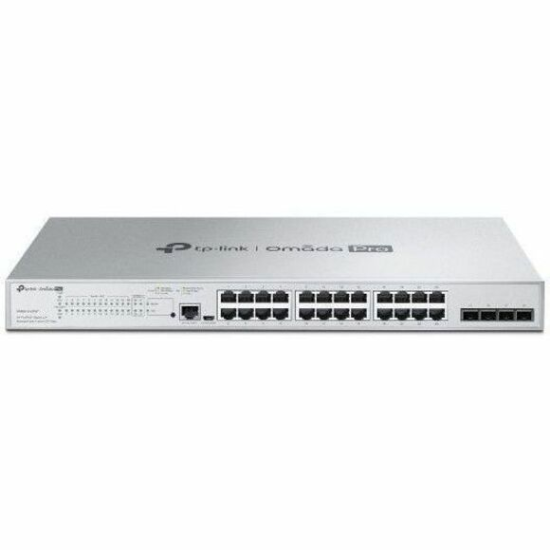

Tp-Link Omada Pro 24-Port Managed 10G L2+ Switch, SFP(4), 1U, 5YR

The TP-Link Omada Pro 24-Port Gigabit PoE+ L2+ Managed Switch is a powerful enterprise networking solution designed for professional business, commercial, and education environments that require high-performance connectivity, advanced management, and Power over Ethernet deployment capabilities.

Featuring 24 Gigabit RJ45 ports with IEEE 802.3af/at PoE+ support, the switch provides high-speed wired networking while simultaneously powering connected devices such as wireless access points, IP cameras, VoIP phones, and smart building systems. With a substantial 250W PoE budget, it supports large-scale PoE deployments across enterprise infrastructures.

The additional 4 Gigabit SFP slots provide flexible fibre uplink connectivity for aggregation and backbone networking, helping improve scalability and long-distance connectivity within growing network environments.

Designed with advanced Layer 2+ management functionality, the switch supports static routing, VLAN segmentation, ACL policies, advanced security protection, intelligent anomaly detection, and extensive network monitoring capabilities. These enterprise features help optimise network performance, improve traffic management, and strengthen infrastructure security.

Integrated Omada Pro cloud management enables simplified remote administration through the Omada Controller platform and Omada mobile app, allowing IT administrators to centrally monitor and manage network infrastructure from virtually anywhere.

Built in a durable 1U rackmount form factor with dual-fan cooling, the switch is ideal for server rooms, network cabinets, schools, and professional enterprise deployments requiring reliable long-term operation.

Key Features:

• 24 Gigabit Ethernet PoE+ ports
• 4 Gigabit SFP uplink slots
• 250W total PoE budget
• IEEE 802.3af/at PoE+ support
• Advanced Layer 2+ managed switching
• Omada Pro cloud management support
• Static routing support
• Intelligent anomaly detection
• Enterprise-grade security features
• Rackmount 1U design
• Dual-fan cooling system
• VLAN and ACL management
• Fibre uplink support
• Professional business networking solution
• 5-year warranty coverage

Specifications:

• Product Type:
  • PoE+ Gigabit L2+ Managed Switch
• Model:
  • Omada Pro 24-Port PoE+ Gigabit L2+ Managed Switch
• Brand: TP-Link

Ports & Interfaces

• 24 × 10/100/1000 Mbps RJ45 Ports
• 4 × Gigabit SFP Slots
• Port Features:
  • Auto Negotiation
  • Auto MDI/MDIX

PoE Features

• PoE Standard:
  • IEEE 802.3af/at
• PoE Ports:
  • 24 Ports
• Total PoE Budget:
  • 250W

Performance

• Switching Capacity:
  • 56 Gbps
• Static Routing:
  • 48 IPv4/IPv6 Static Routes

Management

• Managed Switch:
  • Yes
• Cloud Access:
  • Supported via Omada Pro Controller
• Omada App Support:
  • Yes

VLAN & ACL

• VLAN Support:
  • MAC VLAN (12 Entries)
• Access Control Lists:
  • MAC ACL
  • IP ACL
  • ACL Apply to Port/VLAN
  • Time-Based ACL

Security Features

• IP-MAC-Port Binding
• DoS Defense
• DHCP Filter
• Static/Dynamic Port Security
• IP/Port/MAC-Based Access Control

Advanced Networking Features

• Intelligent Anomaly Detection
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunnelling)
• Device Link Detect Protocol (DLDP)
• PPPoE ID Insertion
• ERPS Support

Cooling & Design

• Fan Quantity:
  • 2
• Mounting:
  • Rack Mountable
• Form Factor:
  • 1U Rackmount
• Dimensions:
  • 440 × 220 × 44 mm

In The Box

• S5500-24GP4F Switch
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

Warranty

• Warranty:
  • 5 Years
