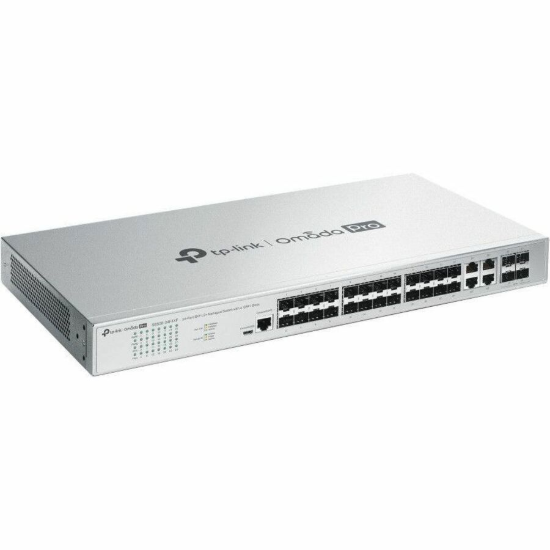

Tp-Link Omada Pro 24-Port Managed 10G L2+ Switch, SFP(20), Combo(4), SFP+(4), 1U, 5YR

The TP-Link Omada Pro 24-Port SFP L2+ Managed Switch is a high-performance enterprise networking solution designed for fibre aggregation, campus networking, and high-speed backbone deployments. Featuring extensive fibre connectivity, advanced Layer 2+ management capabilities, and integrated Omada Pro cloud management, this switch is ideal for professional business and enterprise environments.

Equipped with 20 Gigabit SFP ports and 4 Gigabit SFP/RJ45 combo ports, the switch provides flexible fibre and copper connectivity options for large-scale network infrastructures. Four dedicated 10G SFP+ uplink slots deliver ultra-fast backbone connectivity for aggregation, high-bandwidth server access, and core network integration.

Built for enterprise deployments, the switch supports advanced Layer 2+ networking features including static routing, VLAN management, ACL policies, intelligent anomaly detection, Layer 2 protocol tunnelling, ERPS, and extensive security controls. These features help optimise traffic management, improve network resilience, and strengthen infrastructure security.

The Omada Pro platform enables centralised cloud management through the Omada Controller and Omada mobile app, allowing administrators to monitor, configure, and manage network infrastructure remotely with ease.

Designed for professional server room and rack deployments, the switch features a standard 1U rackmount form factor with active cooling for reliable long-term operation in demanding networking environments.

With enterprise-level performance, high switching capacity, and advanced fibre networking support, the TP-Link Omada Pro 24-Port SFP L2+ Managed Switch is an ideal solution for growing enterprise networks, campuses, data aggregation layers, and commercial fibre deployments.

Key Features:

• 24-port fibre-focused managed switch
• 20 Gigabit SFP ports
• 4 Gigabit SFP/RJ45 combo ports
• 4× 10G SFP+ uplink slots
• Advanced Layer 2+ management features
• Omada Pro cloud management support
• Static routing support
• Enterprise-grade security features
• Intelligent anomaly detection
• High-speed fibre aggregation support
• Rackmount 1U form factor
• Centralised network management
• 128Gbps switching capacity
• Professional enterprise deployment design
• 5-year warranty coverage

Specifications:

• Product Type:
  • L2+ Managed Switch
• Model:
  • Omada Pro 24-Port SFP L2+ Managed Switch
• Brand: TP-Link

Ports & Interfaces

• 20 × Gigabit SFP Ports
• 4 × Gigabit SFP/RJ45 Combo Ports
• 4 × 10G SFP+ Slots
• 1 × RJ45 Console Port
• 1 × Micro-USB Console Port

Performance

• Switching Capacity:
  • 128 Gbps
• Static Routing:
  • 48 IPv4/IPv6 Static Routes

Management

• Managed Switch:
  • Yes
• Cloud Management:
  • Omada Pro Controller
• Omada App Support:
  • Yes

VLAN & ACL

• VLAN Support:
  • MAC VLAN (30 Entries)
• Access Control Lists:
  • Time-Based ACL
  • MAC ACL
  • Combined ACL
  • IPv6 ACL

Security Features

• IP-MAC-Port Binding
• IPv6-MAC-Port Binding
• DoS Defense
• DHCP Filter
• Static/Dynamic Port Security

Advanced Networking Features

• Intelligent Anomaly Detection
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunnelling)
• Device Link Detect Protocol (DLDP)
• PPPoE ID Insertion
• ERPS Support

Cooling & Design

• Fan Quantity:
  • 1
• Mounting:
  • Rack Mountable
• Form Factor:
  • 1U Rackmount
• Dimensions:
  • 440 × 220 × 44 mm

Power

• PoE Support:
  • No

In The Box

• S5500-24F4XF Switch
• 2 × Power Cords
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

Warranty

• Warranty:
  • 5 Years
