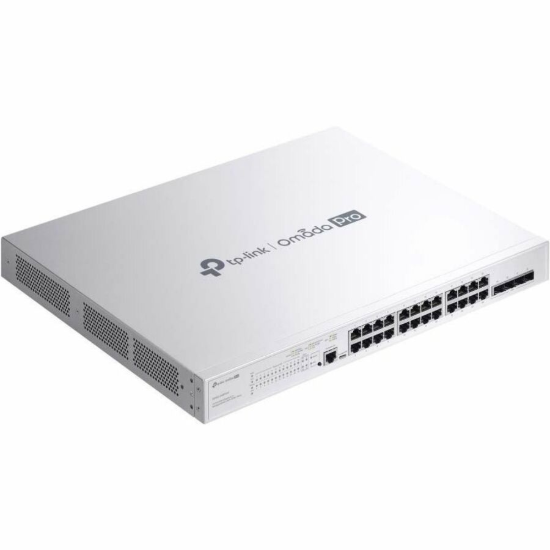

Tp-Link Omada Pro 24-Port Managed 10G L2+ Switch, Poe+(24), SFP+(4), 1U, 5YR

The TP-Link Omada Pro 24-Port Gigabit PoE+ 10G L2+ Managed Switch is a high-performance enterprise networking solution engineered for modern business, campus, and commercial network environments requiring advanced management, high-speed uplinks, and large-scale PoE deployments.

Featuring 24 Gigabit RJ45 ports with full IEEE 802.3af/at PoE+ support, the switch provides high-speed wired connectivity while simultaneously powering connected devices such as wireless access points, IP cameras, VoIP phones, smart displays, and other PoE-enabled infrastructure. With a substantial 384W total PoE power budget, the switch is ideal for dense device deployments across enterprise environments.

To support high-bandwidth aggregation and backbone networking, the switch includes 4 dedicated 10G SFP+ uplink slots for ultra-fast fibre connectivity. These high-speed uplinks help reduce bottlenecks and improve overall network efficiency for demanding data traffic and enterprise applications.

Built with advanced Layer 2+ networking functionality, the switch supports static routing, VLAN segmentation, access control lists, advanced security protection, intelligent anomaly detection, and comprehensive network monitoring capabilities. Enterprise networking technologies such as ERPS, L2PT, DLDP, and Ethernet Link OAM further enhance network reliability and scalability.

Integrated Omada Pro cloud management allows administrators to centrally manage, configure, and monitor the switch remotely using the Omada Controller platform or Omada mobile app for simplified enterprise IT operations.

Housed in a professional 1U rackmount chassis with dual-fan cooling, the switch is designed for reliable long-term deployment in server rooms, commercial racks, campus networks, and enterprise infrastructure environments.

Key Features:

• 24 Gigabit Ethernet PoE+ ports
• 4× 10G SFP+ uplink slots
• 384W total PoE budget
• IEEE 802.3af/at PoE+ support
• Advanced Layer 2+ management
• Omada Pro cloud management support
• High-speed 10G fibre uplinks
• Static routing support
• Intelligent anomaly detection
• Enterprise-grade security features
• Rackmount 1U design
• Dual-fan cooling system
• VLAN and ACL management
• Centralised remote network management
• 5-year warranty coverage

Specifications:

• Product Type:
  • PoE+ Gigabit L2+ Managed Switch
• Model:
  • Omada Pro 24-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP+ Slots
• Brand: TP-Link

Ports & Interfaces

• 24 × 10/100/1000 Mbps RJ45 Ports
  • All Ports Support PoE+
• 4 × 10G SFP+ Slots
• 1 × RJ45 Console Port
• 1 × Micro-USB Console Port

PoE Features

• PoE Standard:
  • IEEE 802.3af/at
• PoE Ports:
  • 24
• Total PoE Power Budget:
  • 384W

Performance

• Switching Capacity:
  • 128 Gbps
• Static Routing:
  • 48 IPv4/IPv6 Static Routes

Management

• Cloud Access:
  • Supported via Omada Pro Controller
• Omada App Support:
  • Yes
• Managed:
  • Yes

VLAN & ACL

• VLAN Support:
  • MAC VLAN (30 Entries)
• Access Control Lists:
  • MAC ACL
  • IP ACL
  • Combined ACL
  • ACL Apply to Port/VLAN

Security Features

• IP-MAC-Port Binding
• DoS Defense
• DHCP Filter
• Static/Dynamic Port Security

Advanced Networking Features

• Intelligent Anomaly Detection
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunnelling)
• Device Link Detect Protocol (DLDP)
• PPPoE ID Insertion
• ERPS Support

Cooling & Design

• Fan Quantity:
  • 2
• Mounting:
  • Rack Mountable
• Form Factor:
  • 1U Rackmount
• Dimensions:
  • 440 × 330 × 44 mm

In The Box

• S5500-24GP4F Switch
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

Warranty

• Warranty:
  • 5 Years
