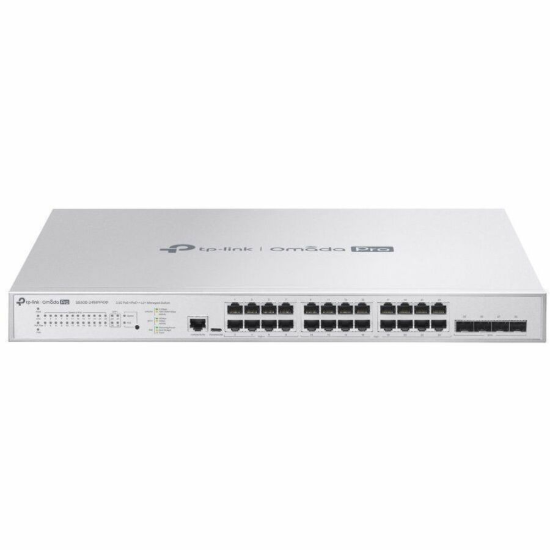

Tp-Link Omada Pro 24-Port Managed 10G L2+ Switch, 2.5G Poe++(8), 2.5G Poe+(16), SFP+(4),

The TP-Link Omada Pro 24-Port 2.5G PoE++/PoE+ L2+ Managed Switch is a high-performance enterprise networking solution designed for next-generation business environments requiring multi-gigabit connectivity, high-power PoE delivery, and advanced Layer 2+ management capabilities.

Featuring 24 high-speed 2.5Gbps RJ45 ports, the switch supports modern bandwidth-intensive applications including Wi-Fi 6/6E/7 access points, high-performance workstations, surveillance systems, and advanced smart building infrastructure. The switch includes 8 PoE++ ports supporting IEEE 802.3bt/at/af standards for high-power devices, alongside 16 PoE+ ports for standard powered networking equipment.

With an impressive 500W total PoE power budget, the switch is ideal for large-scale enterprise PoE deployments, providing reliable power and connectivity to demanding network devices across commercial and campus environments.

To support ultra-fast aggregation and backbone networking, the switch includes 4 dedicated 10G SFP+ uplink slots, delivering high-bandwidth fibre connectivity for core network integration, server connectivity, and high-speed data traffic handling.

Advanced Layer 2+ management features include static routing, VLAN configuration, extensive ACL controls, intelligent anomaly detection, storm control, ERPS, and comprehensive network security capabilities. These enterprise-grade features help optimise traffic management, improve network resilience, and enhance infrastructure protection.

Integrated Omada Pro cloud management allows centralised administration and remote monitoring through the Omada Controller platform and Omada mobile app, enabling simplified enterprise IT management across distributed networks.

Designed for professional deployments, the switch features a durable rackmount 1U chassis with triple-fan cooling for reliable performance in demanding enterprise server room environments.

Key Features:

• 24 × 2.5Gbps RJ45 ports
• 8 × PoE++ ports supporting IEEE 802.3bt
• 16 × PoE+ ports
• 4 × 10G SFP+ uplink slots
• 500W total PoE power budget
• Multi-gigabit enterprise networking
• Advanced Layer 2+ management
• Omada Pro cloud management support
• Static routing support
• Enterprise-grade security features
• Intelligent anomaly detection
• Rackmount 1U form factor
• Triple-fan cooling system
• High-capacity switching performance
• 5-year warranty coverage

Specifications:

• Product Type:
  • 2.5G PoE++/PoE+ L2+ Managed Switch
• Model:
  • Omada Pro 24-Port PoE+ 2.5G L2+ Managed Switch with 4 SFP+ Slots
• Brand: TP-Link

Ports & Interfaces

• 24 × 2.5Gbps RJ45 Ports
  • 8 × PoE++ Ports
  • 16 × PoE+ Ports
• 4 × 10G SFP+ Slots
• 1 × RJ45 Console Port
• 1 × Micro-USB Console Port

PoE Features

• PoE++ Standard:
  • IEEE 802.3bt/at/af
• PoE++ Ports:
  • 8
• PoE+ Ports:
  • 16
• Total PoE Budget:
  • 500W

Performance

• Switching Capacity:
  • 200 Gbps
• Static Routing:
  • 48 Static Routes

Management

• Managed:
  • Yes
• Cloud Access:
  • Supported via Omada Pro Controller
• Omada App Support:
  • Yes

VLAN & ACL

• VLAN Support:
  • MAC VLAN (256 Entries)
• Access Control Lists:
  • MAC ACL
  • IP ACL
  • Packet Content ACL
  • ACL Applies to Port/VLAN
  • Time-Based ACL

Security Features

• IP-MAC-Port Binding
• DoS Defense
• DHCP Filter
• Static/Dynamic Port Security
  • Up to 64 MAC Addresses per Port
• Broadcast/Multicast/Unicast Storm Control
  • kbps/ratio/pps control modes

Advanced Networking Features

• Intelligent Anomaly Detection
• L2PT (Layer 2 Protocol Tunnelling)
• Intelligent Network Monitoring
• Device Link Detect Protocol (DLDP)
• PPPoE ID Insertion
• ERPS Support

Cooling & Design

• Fan Quantity:
  • 3
• Mounting:
  • Rack Mountable
• Form Factor:
  • 1U Rackmount
• Dimensions:
  • 440 × 330 × 44 mm

In The Box

• S5500-24MPP4XF Switch
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

Warranty

• Warranty:
  • 5 Years
