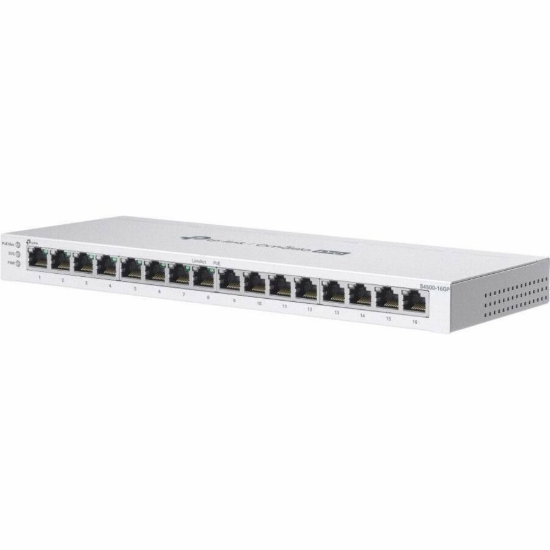

Tp-Link Omada Pro 16-Port Smart Switch, Poe+(8), 1U, 5YR

The TP-Link Omada Pro 16-Port Gigabit Smart Switch with 8-Port PoE+ is a professional-grade networking solution designed for business, education, and enterprise environments requiring reliable connectivity, simplified management, and Power over Ethernet support.

Equipped with 16 Gigabit RJ45 ports, including 8 IEEE 802.3af/at-compliant PoE+ ports, the switch provides high-speed wired connectivity while simultaneously powering compatible devices such as wireless access points, IP cameras, VoIP phones, and other PoE-enabled equipment. With a total PoE power budget of 120W and up to 30W per port, it delivers flexible deployment options for growing network infrastructures.

Built for enterprise-class networking, the switch supports advanced Layer 2 management features including static routing, VLAN configuration, access control lists, intelligent anomaly detection, and advanced security protocols. Omada Pro cloud management enables centralised network administration through the web portal or Omada mobile app for streamlined remote management and monitoring.

The fanless design ensures completely silent operation, making it ideal for office environments, meeting rooms, classrooms, and noise-sensitive installations. Its compact form factor supports both desktop placement and wall mounting for flexible deployment.

With advanced network monitoring, unified configuration management, batch configuration capabilities, and abnormal event alerts, the TP-Link Omada Pro Smart Switch provides scalable and reliable networking performance for professional environments.

Key Features:

• 16 Gigabit Ethernet ports
• 8 PoE+ ports supporting IEEE 802.3af/at
• 120W total PoE power budget
• Up to 30W PoE output per port
• Omada Pro cloud management support
• Web and Omada app management
• Static routing support
• Fanless silent operation
• Desktop and wall-mount installation
• Advanced Layer 2 smart management
• VLAN and ACL support
• Intelligent network monitoring
• Enterprise-grade security features
• Compact professional design
• 5-year warranty coverage

Specifications:

• Product Type:
  • Smart Gigabit PoE+ Switch
• Model:
  • Omada Pro 16-Port Gigabit Smart Switch with 8-Port PoE+
• Brand: TP-Link

Ports & Connectivity

• Ethernet Ports:
  • 16 × 10/100/1000 Mbps RJ45 Ports
• PoE Ports:
  • Ports 1–8 Support 802.3at/af PoE+
• Port Features:
  • Auto-Negotiation
  • Auto MDI/MDIX

PoE Features

• PoE Standard:
  • IEEE 802.3af/at
• PoE Budget:
  • 120 W Total
• Maximum PoE Output:
  • 30 W per Port

Performance

• Switching Capacity:
  • 32 Gbps
• Static Routing:
  • 32 IPv4/IPv6 Static Routes

Management

• Managed Switch:
  • Yes
• Cloud Access:
  • Supported via Omada Pro Controller
• Omada App Support:
  • Yes
• Standalone Management:
  • Web Interface
  • CLI
  • SNMP
  • RMON

VLAN & Security

• VLAN Support:
  • MAC VLAN (12 Entries)
• Access Control Lists:
  • Time-Based ACL
  • MAC ACL
  • IP ACL
  • Combined ACL

Security Features

• IP-MAC-Port Binding
• IP/IPv6-MAC Binding
• IP Source Guard
• DoS Defense
• Static/Dynamic/Permanent Port Security

Advanced Features

• Intelligent Anomaly Detection
• Automatic Device Discovery
• Intelligent Network Monitoring
• Unified Configuration
• Abnormal Event Warnings
• Batch Configuration

Design

• Cooling:
  • Fanless
• Mounting Options:
  • Desktop
  • Wall-Mounting
• Dimensions:
  • 286 × 111.7 × 25.4 mm

In The Box

• S4500-16GP Switch
• Power Adapter
• Installation Guide
• Rubber Feet

Warranty

• Warranty:
  • 5 Years
