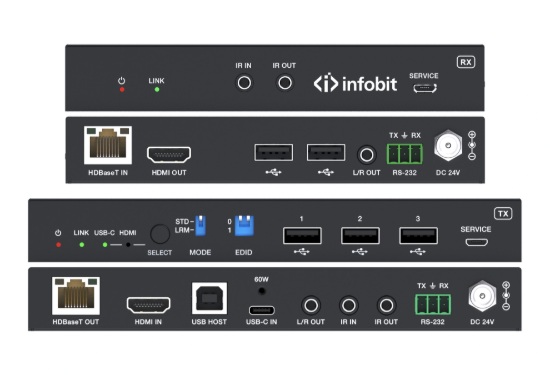

iTrans E100HCU 4K2K@60Hz HDBaseT 2.0 Extender – USB-C & HDMI, HDR10+/Dolby Vision, Bi-Directional IR/USB 2.0, PoC, EDID Management

The E100HCU transmits 4K60/4K30/1080p signals up to 328ft/100m in standard mode and 1080p signals up to 492ft/150m in long-reach mode, making it perfect for medium to large installations. It supports both USB-C and HDMI inputs with auto or manual switching, while USB-C handles DP-ALT mode for AV, USB 2.0 data, and up to 60W power charging. HDMI auto-switching detects 5V or active signal automatically for simplified setup.

Advanced video features include HDR, HDR10, HDR10+, Dolby Vision LLM, and HLG pass-through, along with 4K-to-1080p downscaling on HDMI output without frame rate conversion. Both TX and RX units support analog audio de-embedding, RS-232 signal pass-through, bi-directional IR, and USB 2.0 signal transmission. Power delivery is flexible, with TX USB-A ports supplying up to 500mA and RX USB-A ports up to 1000mA. Bi-directional 24V PoC further simplifies cabling, while advanced EDID management ensures compatibility with all connected displays.

Key Features:

• Supports up to 4K2K@60Hz 4:4:4 resolution with 18Gbps bandwidth
• HDBaseT 2.0 with HDCP 2.3 compliance
• Transmission distance: 328ft/100m (4K60/4K30/1080p) or 492ft/150m (1080p) via single CAT6A/7 cable
• USB-C & HDMI inputs with auto/manual switching
• USB-C DP-ALT mode for AV, USB 2.0, and up to 60W charging
• HDR, HDR10, HDR10+, Dolby Vision LLM, and HLG pass-through
• 4K-to-1080p downscaling without frame rate conversion
• Analog audio de-embedding, RS-232 pass-through, bi-directional IR, USB 2.0 support
• TX USB-A ports power up to 500mA; RX USB-A ports up to 1000mA
• Bi-directional 24V PoC for simplified cabling
• Advanced EDID management for seamless display compatibility
