Hpe Acceltex Us 2 Pin Power Plug 30 Watt 10/100/1000 Poe Injector And Line Cord Ex Demo Opened

Product Description

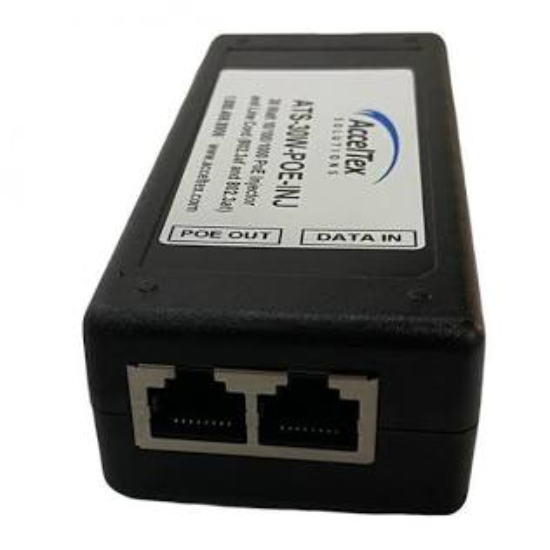

The AccelTex Solutions ATS-30W-POE-INJ is a high-performance, single-port Power over Ethernet (PoE) injector designed to deliver up to 30 watts of power along with gigabit-speed data transmission to remote edge devices. It acts as an ideal midspan power source for enterprise wireless access points (APs), IP security cameras, VoIP phones, and other network equipment that support standard IEEE 802.3af (PoE) or 802.3at (PoE+) power delivery.

This simple plug-and-play unit bridges standard Ethernet data from a non-PoE network switch with 30W of safe DC power, passing both down a single Cat5e or Cat6 cable up to 328 feet (100 meters). The unit features auto-sensing technology to deliver the exact amount of wattage required by the connected device without risking overvoltage.

(Note: Since this specific unit is marked as "Ex Demo Opened," it is an open-box display or demonstration unit. It may show minor cosmetic handling marks but is fully tested, functional, and includes the US 2-pin power cord).

Key Features

• 30-Watt Power Delivery: Supplies up to 30W of power, fully supporting both IEEE 802.3af (15.4W) and high-power IEEE 802.3at (30W) PD devices.

• Gigabit Speeds: Supports 10/100/1000 Mbps pass-through data rates, ensuring high-speed network performance without bottlenecking.

• US 2-Pin Power Input: Includes the matching AC line cord with a standard US 2-pin electrical plug for simple, direct wall outlet connection.

• Safe Midspan Protection: Features short-circuit, over-current, and over-voltage protection to safeguard connected network hardware.

• Plug-and-Play Setup: Requires zero software configuration, IP configuration, or management—simply connect the data line, power line, and device.

• Compact Footprint: Easily sits on desktop surfaces, mounts inside cabinets, or hides away behind structures.

Technical Specifications

• Model Number: ATS-30W-POE-INJ-DEMO (Original Base Model: ATS-30W-POE-INJ)

• PoE Standards: IEEE 802.3af and IEEE 802.3at compliant

• Data Interface Rates: 10/100/1000 Mbps Base-T

• Input Voltage: 100-240V AC (50/60Hz)

• Output Voltage: 48-56V DC

• Power Output: Up to 30 Watts Max

• Interface Ports:

  • 1 x RJ45 Data Input (Data In)

  • 1 x RJ45 PoE Output (Data + Power Out)

• Power Cable Type: US 2-Pin polarized AC line cord (included)
