Hpe Acceltex N-Style Bulkhead Jack To Plug Lightning Arrestor Ex Demo Opened

Product Description

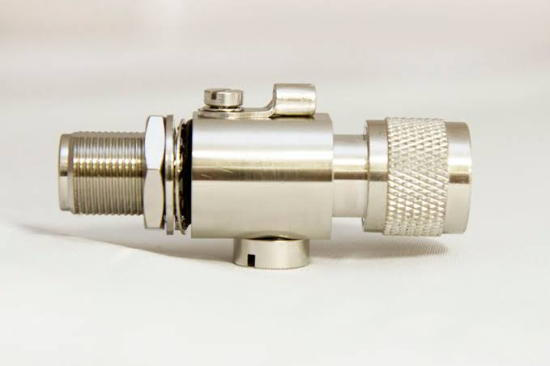

The AccelTex Solutions N-Style Bulkhead Jack to Plug Lightning Arrestor is a high-performance coaxial surge protector designed for critical outdoor wireless networks. Positioned between an outdoor antenna and an indoor access point (AP) or bridge, this device safeguards network infrastructure from transient overvoltages, static discharge, and high-energy electrical surges caused by nearby lightning strikes.

Operating across a wide frequency range from DC to 6 GHz, this arrestor maintains minimal signal loss (insertion loss) and excellent return loss, ensuring that high-speed Wi-Fi 6/6E, LTE, or point-to-point wireless signals pass through unimpeded. The bulkhead jack-to-plug configuration allows for clean pass-through installations directly into an enclosure wall or mounting bracket, establishing an immediate and secure earth ground connection.

(Note: Since this specific unit is marked as "Ex Demo Opened," it is a previously opened demonstration model. It may show minor handling marks on the metal finish, but its internal gas discharge tube and coaxial pathways are fully operational and ready to protect your equipment).

Key Features

• Broadband Performance: Operates over a wide frequency range from DC up to 6 GHz, making it fully compatible with 2.4 GHz, 5 GHz, Wi-Fi 6E (6 GHz), and sub-6 GHz cellular bands.

• Low Insertion Loss: Engineered to minimize signal attenuation (typically under 0.4 dB), ensuring optimal wireless range and throughput performance.

• Bulkhead Mounting Design: Features an integrated bulkhead thread, nut, and washer on the jack side, allowing the unit to be mounted through cabinet walls or brackets and grounded directly.

• Gas Discharge Tube Technology: Utilizes a highly reliable, replaceable gas tube element that triggers quickly during a voltage spike to divert excess electrical energy safely to the ground.

• Weatherproof Construction: Built with high-durability, nickel-plated brass and integrated O-rings to survive harsh outdoor environments when properly sealed.

• In-Line Connection: Features an N-type female (Bulkhead Jack) connector on one side and an N-type male (Plug) connector on the other for quick, in-line cable integration.

Technical Specifications

• Model Number: ATS-LP-N-BHJ-P (Ex Demo)

• Frequency Range: DC - 6 GHz

• Impedance: 50 Ohms

• Connectors:

  • Port 1: N-Style Female Bulkhead Jack (with grounding ring, washer, and nut)

  • Port 2: N-Style Male Plug

• VSWR: < 1.5:1

• Insertion Loss: ≤ 0.4 dB

• Surge Protection Element: Gas Discharge Tube (GDT)

• Body Material: Nickel-Plated Brass
