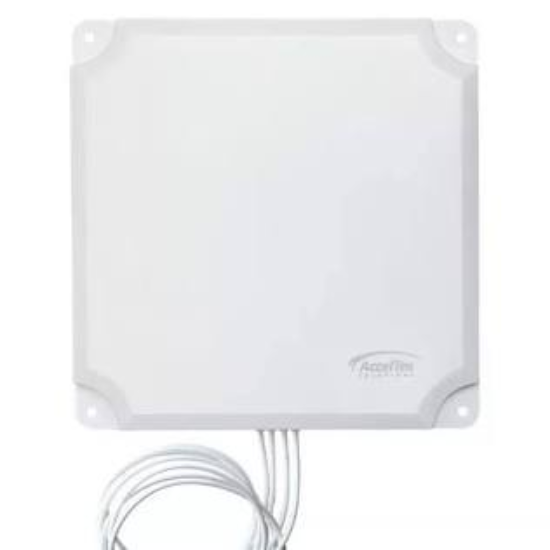

Hpe Acceltex Acceltex 2.4/5 GHZ 13 Dbi 4 Element Indoor/Outdoor Patch Antenna Ex Demo Opened

Product Description

The AccelTex Solutions 2.4/5 GHz 13 dBi 4-Element Patch Antenna is a heavy-duty, high-gain directional antenna designed to optimize wireless coverage in challenging indoor and outdoor environments. It is engineered to operate seamlessly in both the 2.4 GHz and 5 GHz frequency bands, housing four dual-band, integrated radiating elements within a single weather-resistant, low-profile enclosure.

Offering a powerful 13 dBi of signal gain, this patch antenna focuses wireless energy into a narrower directional beam rather than radiating it 360 degrees. This focused pattern makes it the perfect solution for illuminating long warehouse aisles, projecting signals down hallways, spanning outdoor courtyards, or establishing reliable point-to-point bridging.

(Note: Since this specific unit is marked as "Ex Demo Opened," it is a previously opened demonstration model. It may show minor surface scuffs on the plastic radome, but its internal patch array, coaxial leads, and RF performance remain fully functional and intact).

Key Features

• Dual-Band Operation: Supports both 2.4 GHz and 5 GHz Wi-Fi frequencies simultaneously on all four leads, making it ideal for modern dual-band enterprise APs.

• High-Gain Directional Coverage: Delivers 13 dBi of gain to significantly extend coverage range and penetration in a targeted forward direction.

• 4-Element MIMO Support: Equipped with 4 separate RF cable leads to fully support 4x4 MIMO (Multiple-Input Multiple-Output) technology for maximum data throughput.

• All-Weather Durability: Enclosed in a rugged, UV-resistant plastic radome designed to withstand harsh outdoor deployments as well as industrial indoor environments.

• Clean Cable Management: Features four low-loss coaxial pigtails protruding neatly from the bottom of the radome for direct, simplified routing to the AP.

• Flexible Mounting Options: Compatible with standard wall/pole mount articulation brackets to allow easy angling and precise directional aiming.

Technical Specifications

• Model Line: AccelTex 13 dBi 4-Port Directional Patch

• Frequency Range: Dual-Band (2.4 - 2.5 GHz & 4.9 - 5.9 GHz)

• Gain: 13 dBi

• Number of Elements / Ports: 4

• Polarization: Horizontal and Vertical

• Horizontal Beamwidth: ~35° (focused narrow beam)

• Vertical Beamwidth: ~35°

• Connector Types: Available with standard RP-SMA or RPTNC connectors (check your specific demo unit's pigtails for matching AP compatibility)

• Radome Material: UV-Resistant ABS / Polycarbonate (White)

• Environment: Indoor / Outdoor (IP65/IP67 rated)
