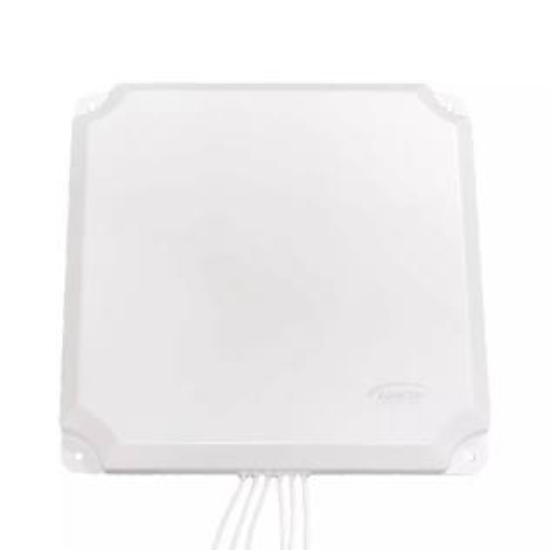

Hpe Acceltex 2.4/5 GHZ 13 Dbi 6 Element Indoor/Outdoor Patch Antenna With Rpsma Ex Demo Opened

Product Description

The AccelTex Solutions 2.4/5 GHz 13 dBi 6-Element Patch Antenna is a professional-grade directional antenna engineered to optimize performance in demanding high-density environments. Perfect for indoor locations with challenging layouts—like stadium seating, high-bay warehousing, and sprawling convention halls—or demanding outdoor deployments, this antenna operates efficiently across both 2.4 GHz and 5 GHz frequency bands.

Equipped with six integrated dual-band elements within a single, low-profile radome, this model delivers a powerful 13 dBi of focused directional gain. This focused beam pattern allows network administrators to direct RF energy precisely where it is needed while isolating coverage zones to reduce overall channel interference. The six standard low-loss pigtails are terminated with RP-SMA Male connectors, designed for seamless connection to 6-port enterprise-class access points.

(Note: Since this specific unit is marked as "Ex Demo Opened," it is a previously opened display or demonstration model. It may show minor surface handling marks on the housing, but the internal six-element patch array, low-loss pigtails, and RP-SMA connectors are fully functional and ready for service).

Key Features

• Dual-Band 6-Port Design: Houses six integrated dual-band radiating elements in a single enclosure, making it the perfect match for advanced 6-port enterprise-class APs.

• RP-SMA Male Connectors: Features six integrated, low-loss coaxial pigtails pre-terminated with RP-SMA Male connectors for quick and secure installation.

• Focused 13 dBi Gain: Delivers high-gain directional coverage that significantly extends signal range, penetration, and reception in a targeted direction.

• Mitigate RF Interference: Concentrates wireless signals to reduce spillover into adjacent cells, helping to optimize channel reuse in dense network designs.

• All-Weather Construction: Protected by a rugged, UV-resistant plastic radome designed to withstand harsh outdoor elements as well as dusty, industrial indoor areas.

• Versatile Mounting: Includes integrated mounting holes and is fully compatible with standard AccelTex wall, pole, and articulating mount brackets.

Technical Specifications

• Model Number: ATS-OP-245-13-6RPSP-36 (Ex Demo)

• Frequency Range: Dual-Band (2.4 - 2.5 GHz & 4.9 - 5.85 GHz)

• Gain: 13 dBi

• Number of Elements / Ports: 6

• Polarization: 3 x Vertical, 3 x Horizontal

• Horizontal Beamwidth: ~35° (focused narrow beam)

• Vertical Beamwidth: ~35°

• Connector Type: RP-SMA Male (Plug)

• Cable Length: 36 inches (approx. 91 cm) of integrated low-loss coaxial pigtails

• Radome Material: UV-Resistant ABS / Polycarbonate (White)

• Environment: Indoor / Outdoor (IP65/IP67 rated)
