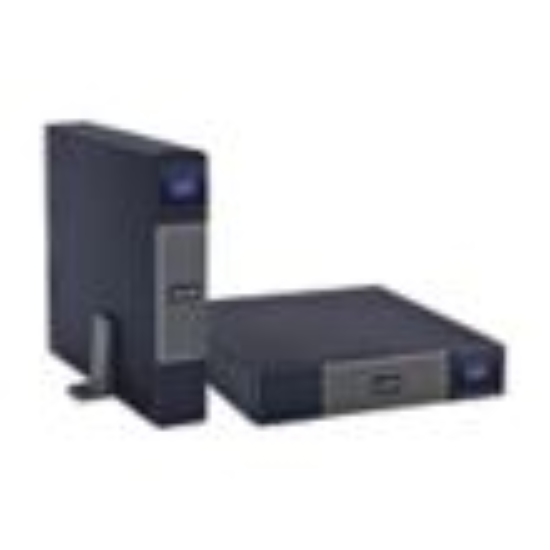

Eaton 5PX G2 3000VA Rack/Tower UPS – 3kW, Line-Interactive, Hot Swappable, ENERGY STAR® 2.0 Certified

Ideal for use in schools, universities, server rooms, network closets, and enterprise systems, this flexible rack/tower convertible UPS ensures continuous, clean, and manageable power to critical equipment such as servers, switches, routers, and storage devices.

With hot-swappable and user-replaceable batteries, advanced graphical LCD status display, and intelligent load prioritization, the 5PX G2 provides advanced power management with seamless scalability. It also supports relay and network management cards, and meets ENERGY STAR® 2.0 certification for energy efficiency and sustainability.

Key Features:

• Load Capacity: 3000 VA / 3000 W (True watt-for-VA ratio)

• UPS Type: Line-Interactive

• Waveform Output: Pure Sine Wave

• Plug Type: IEC 60320 C20 (16A)

• Output Receptacles:

  • 8 x IEC 60320 C13 (10A)

  • 2 x IEC 60320 C19 (16A)

• Input Voltage Range:

  • 150–294 V AC

  • 160–294 V AC

• Selectable Output Voltage:

  • 200V, 208V, 220V, 230V, 240V AC

• Input/Output Frequency: 60 Hz

• Phase: Single Phase

Battery & Maintenance:

• Battery Type: User-replaceable, hot-swappable

• Battery Backup Support: Extendable via optional external battery packs

• Battery Maintenance: Easy front-access design

Management & Interfaces:

• LCD Display: Graphical, with real-time status and UPS metrics

• USB (HID Compliant) Port

• Serial Port

• Network (RJ-45) Port

• Optional Cards Supported:

  • Relay-MS Card

  • Network-M3 Card

Environmental & Physical Specs:

• Max Operating Temperature: 40°C

• Sound Emission: 40 dB

• Form Factor: Rack/Tower Convertible

• Rack Height: 2U

• Dimensions: 85.5 mm (H) x 438 mm (W) x 603 mm (D)

• Weight: Approx. 31.7 kg

• Package Includes: UPS Unit, Pedestal, and Rail Kits

Certifications:

• Energy Star Certified: ENERGY STAR® 2.0

• Environmentally Friendly: Yes

• RoHS/TÜV Compliant

Ideal Applications:

• School IT infrastructure

• University server/network closets

• Data storage arrays

• POS terminals and gateways

• Telecom & healthcare environments

Manufacturer Info:
Eaton Corporation
Visit: www.eatoncorp.com.au
