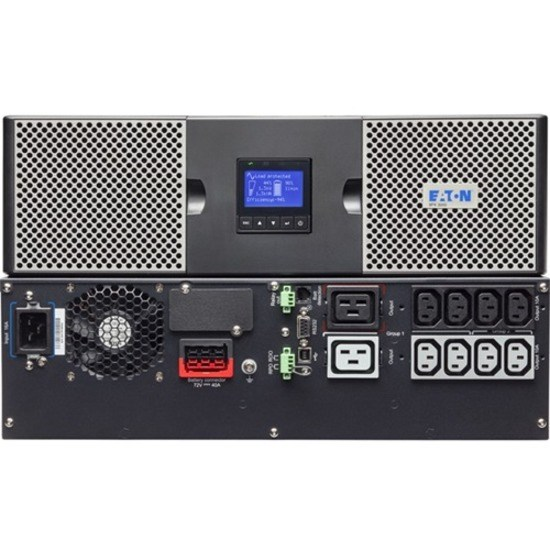

Eaton 9PX 2200VA Rack/Tower UPS – 2.2kW, Double Conversion Online, 10x IEC Outlets, ENERGY STAR® Certified

With a true double conversion online topology, it delivers clean, continuous power to sensitive equipment such as servers, CCTV systems, POS terminals, storage devices, and access control systems.

With a 2.2kW output, support for up to 4 external battery cabinets, and hot-swappable batteries, this UPS is ideal for environments that require extended runtime and zero downtime during battery replacements. The ENERGY STAR® certification ensures high energy efficiency for lower total cost of ownership.

Key Features:

• Load Capacity: 2200 VA / 2200 W

• Plug Type: IEC 60320 C20 (16A)

• Output Receptacles:

  • 8 x IEC 60320 C13 (10A)

  • 2 x IEC 60320 C19 (16A)

• Hot Swappable Batteries: Yes

• External Battery Cabinet Support: Up to 4

• Input Voltage Range: 176–276 V AC

• Output Voltage Options: 200V / 208V / 220V / 230V / 240V AC

• Input Frequency: 70 Hz | Output Frequency: 60 Hz

• Phase: Single Phase

• Sound Level: 40 dB

Connectivity & Management:

• USB (HID Compliant) Port

• Serial Port

• Intelligent LCD display and compatible with Eaton's power management software

Environmental & Physical Specs:

• ENERGY STAR® Certified for energy efficiency

• Maximum Operating Temperature: 40°C

• Dimensions: 130 mm (H) x 440 mm (W) x 485 mm (D)

• Rack Height: 2U

• Weight: Approx. 24.5 kg

• Form Factor: Rack/Tower Convertible

Ideal Applications:

• School servers and storage systems

• Security infrastructure (CCTV, gate systems)

• POS terminals in administrative or retail areas

• Networking and IT closets

Manufacturer Info:
Eaton Corporation
Visit: www.eatoncorp.com.au
