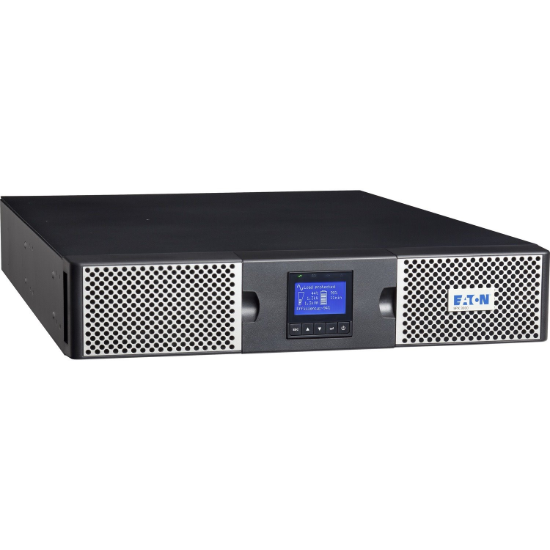

Eaton 9PX 3000VA Rack/Tower UPS – 3kW, Double Conversion Online, Hot-Swappable Batteries, ENERGY STAR® Certified

Delivering a full 3000W (3kW) of true power output, this compact 2U rack/tower convertible UPS ensures zero transfer time during outages and provides highly efficient power protection for servers, CCTV systems, POS terminals, gates, and storage solutions. With hot-swappable 12V batteries, scalable runtime (up to 4 external battery cabinets), and a full-featured LCD interface, it meets the highest standards of reliability and manageability.

Key Features:

• Load Capacity: 3000 VA / 3000 W (True Watt-for-VA ratio)

• UPS Type: Double Conversion Online

• Waveform Output: Pure Sine Wave

• Plug Type: IEC 60320 C20

• Output Receptacles:

  • 8 x IEC 60320 C13 (10A)

  • 2 x IEC 60320 C19

• Input Voltage Range: 176–276 V AC

• Selectable Output Voltage: 200V, 208V, 220V, 230V, 240V AC

• Input Frequency: 70 Hz

• Output Frequency: 60 Hz

• Backup Time (Full Load): Approx. 3 Minutes

• Battery: 12V Sealed Lead Acid, 9000 mAh

• Hot Swappable Batteries: Yes

• External Battery Support: Up to 4 cabinets

Interfaces & Monitoring:

• USB (HID Compliant)

• Serial Port

• LCD Display: Multilingual Graphical Interface

• SNMP and network management options supported (optional card)

Environmental & Physical Specifications:

• Max Operating Temperature: 40°C

• Max Operating Elevation: 3,000 m

• Sound Level: 40 dB

• Form Factor: Rack/Tower Convertible

• Rack Height: 2U

• Dimensions: 86.5 mm (H) x 440 mm (W) x 605 mm (D)

• Weight: Approx. 27.6 kg

• Certifications: TÜV, ENERGY STAR®

Ideal Applications:

• School and university server rooms

• CCTV and surveillance systems

• POS and retail infrastructure

• Access control and automated gate systems

• Storage arrays and network switches

Manufacturer Info:
Eaton Corporation
Visit: www.eatoncorp.com.au
