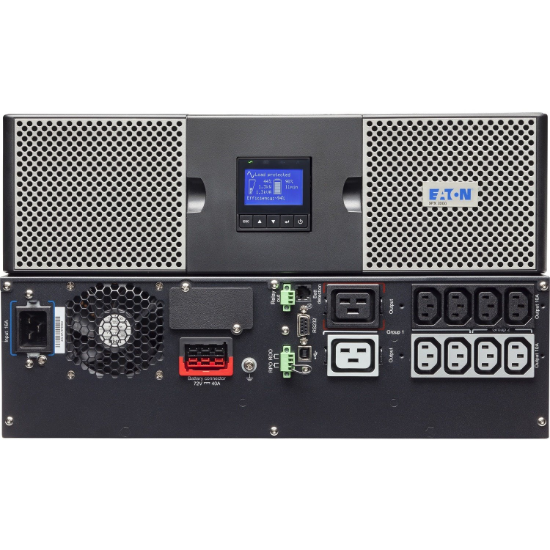

Eaton 9PX 3000VA Rack/Tower UPS – 3kW, Double Conversion Online, 3U, Hot Swappable, ENERGY STAR® Certified

Designed for performance and flexibility, this 3U form factor unit provides 3000W of continuous, clean power and supports up to 4 external battery cabinets for scalable runtime.

Equipped with hot-swappable batteries, a multilingual LCD interface, and intelligent load management, the 9PX 3kVA UPS ensures maximum uptime and easy operation in both rack-mounted and standalone (tower) configurations.

Key Features:

• Power Output: 3000 VA / 3000 W (True Watt-for-VA delivery)

• UPS Type: Double Conversion Online

• Plug Type: IEC 60320 C20 (16A)

• Output Receptacles:

  • 8 x IEC 60320 C13 (10A)

  • 2 x IEC 60320 C19 (16A)

• Input Voltage Range: 176–276 V AC

• Selectable Output Voltage: 200V, 208V, 220V, 230V, 240V AC

• Input Frequency: 70 Hz

• Output Frequency: 60 Hz

• Phase: Single Phase

• Hot Swappable Batteries: Yes

• Supports Up to 4 External Battery Cabinets

Connectivity & Monitoring:

• USB (HID Compliant) Port

• Serial Port

• Multilingual Graphical LCD Display for real-time status updates

• SNMP Compatible (via optional network card)

Environmental & Physical Specifications:

• Operating Temperature: Up to 40°C

• Sound Level: 40 dB

• Form Factor: Rack/Tower Convertible

• Rack Height: 3U

• Dimensions: 130 mm (H) x 440 mm (W) x 485 mm (D)

• Weight: Approx. 27.4 kg

• Certifications: TÜV, ENERGY STAR®

Recommended For:

• School and university server infrastructure

• CCTV and surveillance equipment

• Point-of-sale systems and access control (gates, security)

• Storage and networking devices in data closets or labs

Manufacturer Info:
Eaton Corporation
Visit: www.eatoncorp.com.au
