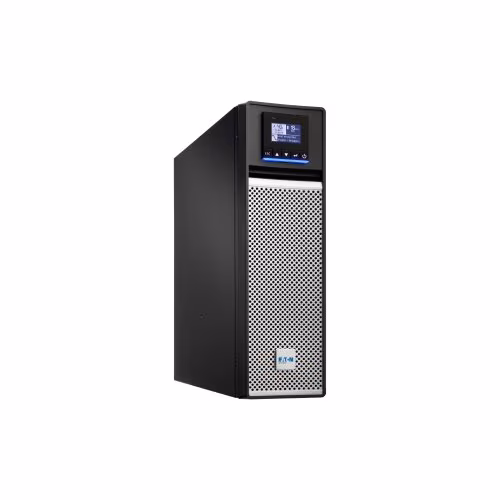

Eaton 5PX G2 3000VA Rack/Tower UPS – 3kW, 3U, Line-Interactive, Hot Swappable, ENERGY STAR® 2.0 Certified

Delivering 3000W of true sine wave output, this high-efficiency UPS is purpose-built for servers, network switches, routers, storage devices, and other mission-critical IT systems in education, enterprise, and commercial environments.

Housed in a 3U rack/tower convertible design, it features hot-swappable and user-replaceable batteries, a graphical LCD interface for real-time monitoring, and advanced management via USB, serial, and network interfaces. Fully compatible with Relay-MS and Network-M3 cards, the 5PX G2 ensures reliable uptime with ENERGY STAR® 2.0 certified energy efficiency.

Key Features:

• Load Capacity: 3000 VA / 3000 W (1:1 power factor)

• UPS Type: Line-Interactive with Pure Sine Wave Output

• Plug Type: IEC 60320 C20 (16A)

• Output Receptacles:

  • 8 x IEC 60320 C13 (10A)

  • 2 x IEC 60320 C19 (16A)

• Phase: Single Phase

• Selectable Output Voltage: 200V, 208V, 220V, 230V, 240V AC

• Input Voltage Range: 150–294 V AC / 160–294 V AC

• Input/Output Frequency: 60 Hz

• Input Voltage Support: 120 V AC / 230 V AC

Battery & Power Management:

• Battery Type: Sealed, Hot Swappable, and User-Replaceable

• Runtime Extension: Supports external battery modules (sold separately)

• Real-Time Monitoring: Graphical LCD display with UPS status & load measurements

• Energy Efficiency: ENERGY STAR® 2.0 certified for reduced operational cost

Management & Interfaces:

• USB (HID Compliant) Port

• Serial Port

• Network (RJ-45) Port

• Optional Cards Supported: Relay-MS Card, Network-M3 Card

Environmental & Physical Specs:

• Max Operating Temperature: 40°C

• Sound Emission: 40 dB

• Form Factor: Rack/Tower Convertible

• Rack Height: 3U

• Dimensions:

  • Height: 129 mm

  • Width: 438 mm

  • Depth: 483 mm

• Weight: Approx. 31.1 kg

• Package Includes: UPS Unit, Pedestal, Rail Kits

Ideal Applications:

• School & university server rooms

• IT racks in commercial buildings

• Telecom & networking cabinets

• Data backup and storage infrastructure

Manufacturer Info:
Eaton Corporation
Website: www.eatoncorp.com.au
