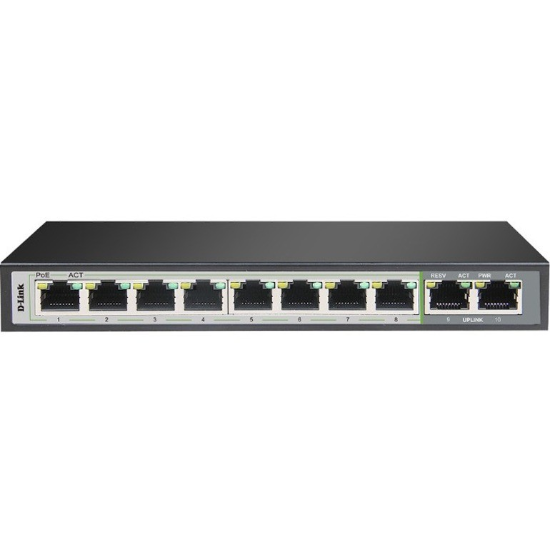

D-Link DGS-F1010P-E 10 Ports Ethernet Switch - Gigabit Ethernet - 10/100/1000Base-T

D-Link 10-Port Unmanaged PoE Switch with 8 RJ45 PoE and 2 Uplink Ports

Availability: 23 in stock

SKU: DGS-F1010P-E

DGS-F1010P-E is 10 port 1Gps with 8 PoE port switch that offers 8 10/100/1000 Mbps PoE ports, 2 10/100/1000Mbps uplink ports, auto detection and identification IEEE802.3af/at standard PD device, then carry power to it. Therefore, do not worry it will destroy the private standard PoE or NonPoE equipment. DGS-F1010P-E is the best choice for mini type commercial network because it economically uses PoE deployment wireless AP and IP camera. It can resolve the problem of maintenance tedious, wireless coverage, terminal device powered, surveillance project. Maximum save the cost.

Product Information

RJ-45 Ports: 10
RJ-45 Speeds: 10/100/1000
Combo Ports (RJ-45 + SFP): 8 RJ45 PoE + 2 Uplink Ports
SFP (Small Form-Factor Pluggable) Ports : 0
SFP Speeds: 0
PoE++ (60w) or higher available?: Yes
Number of PoE Ports: 8
Extended PoE?: No
Capacity in Millions of Packets per Second (mpps): 14800pps to 1488000pps
Switching Capacity in Gigabits per Second (Gbps): 20 Gbps
Web-based GUI: No
Redundant Power Supply: No
19" Rack Mountable: Desktop
DIN-Rail Mountable: No
Stacking Capacity (Physical): No
Stacking Capacity (Virtual): No
IPv4 Routing: No
IPv6 Routing: No
DHCP (Dynamic Host Configuration Protocol) Server Screening: No
Ruggedized: No
Operating Temperature: 0 to 40 C
Unit dimensions: 184 x 94 x 27mm
Warranty Licence: 3 Years

Specifications

Warranty	3 Years
Cloud Managed	No
Cooling	Active
Form factor	Desktop
Licence Required	No
Main Port Type	Ethernet
Managed	Unmanaged
OSI Layer Capability	Layer 2
PoE Budget	120
Port Count	10
Port Speed	10/100/1000
Redundant Power Supply	No
SFP Ports	0
Stackable	No
Standard Warranty	3 Years
