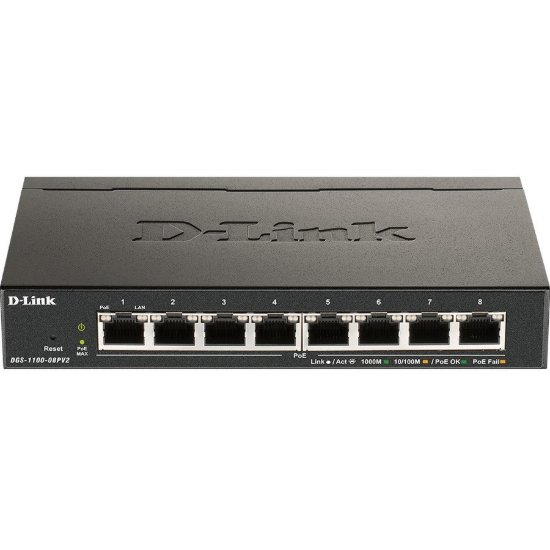

D-Link DGS-1100 DGS-1100-08PV2 8 Ports Manageable Ethernet Switch - Gigabit Ethernet - 1000Base-T

D-Link DGS-1100 DGS-1100-08PV2 8 Ports Manageable Ethernet Switch - Gigabit Ethernet - 1000Base-T
Availability: 1 in stock
SKU: DGS-1100-08PV2

The DGS-1100V2 Series supports surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per-port basis for important functions that require larger bandwidth or have higher priority.

Product Information

  • RJ-45 Ports: 8
  • RJ-45 Speeds: 10/100/1000
  • Combo Ports (RJ-45 + SFP): 8 PoE Ports
  • SFP (Small Form-Factor Pluggable) Ports : 0
  • SFP Speeds: 0
  • PoE++ (60w) or higher available?: Yes
  • Number of PoE Ports: 8
  • Extended PoE?: No
  • Capacity in Millions of Packets per Second (mpps): 11.9 Mpps
  • Switching Capacity in Gigabits per Second (Gbps):16 Gbps
  • Web-based GUI: Yes
  • Redundant Power Supply: No
  • 19" Rack Mountable: Desktop or 19, rack mount (mounting brackets included)
  • DIN-Rail Mountable: No
  • Stacking Capacity (Physical): No
  • Stacking Capacity (Virtual): No
  • IPv4 Routing: Yes
  • IPv6 Routing: Yes
  • DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
  • Ruggedized: No
  • Operating Temperature: 0 to 40 C
  • Unit dimensions: 171 x 97.8 x 28.6 mm
  • Warranty Licence: Limited Lifetime Warranty

Specifications

Cloud ManagedNo
CoolingPassive
Form factorRack-mount
Licence RequiredNo
Main Port TypeEthernet
ManagedSmart Managed
OSI Layer CapabilityLayer 2
PoE Budget64
Port Count8
Port Speed10/100/1000
Redundant Power SupplyNo
SFP Ports0
StackableNo
Standard WarrantyLimited Lifetime Warranty
