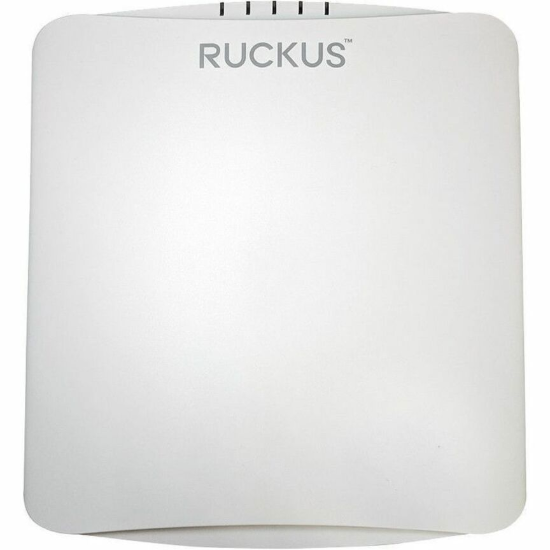

CommScope R750 802.11ax 3.46 Gbit/s Wireless Access Point

The RUCKUS R750 Unleashed is an enterprise-class dual-band Wi-Fi 6 indoor access point designed to deliver exceptional wireless performance, scalability, and reliability in high-density business environments. Built with advanced 802.11ax technology and intelligent BeamFlex+ adaptive antenna technology, the R750 is engineered to provide superior wireless coverage, improved signal quality, and optimized connectivity for demanding enterprise deployments.

Featuring a powerful 4x4:4 radio architecture, the R750 delivers ultra-fast wireless performance with maximum data rates of up to 2400 Mbps on the 5 GHz band and up to 1148 Mbps on the 2.4 GHz band. The access point is capable of supporting up to 1024 concurrent users, making it ideal for high-density environments such as corporate offices, universities, convention centers, hospitality venues, and large public spaces.

The integrated BeamFlex+ technology dynamically optimizes antenna patterns to improve signal strength, reduce interference, and enhance client performance across complex wireless environments. With over 4000 aerial patterns per band, the R750 intelligently adapts to changing network conditions to deliver reliable wireless connectivity.

The R750 also includes dual-port networking with a high-speed 2.5GbE port for enhanced backhaul capacity and improved network throughput. PoE+ support simplifies installation by enabling power and data transmission through a single Ethernet cable.

The Unleashed cloud-managed platform allows simplified controller-free deployment and centralized wireless management, reducing infrastructure complexity while maintaining enterprise-grade control and scalability.

Designed for mission-critical wireless environments, the RUCKUS R750 delivers next-generation Wi-Fi 6 performance, intelligent RF optimization, and exceptional client capacity for modern enterprise networking.

Key Features:

• Enterprise-grade Wi-Fi 6 indoor access point
• Dual-band 2.4 GHz and 5 GHz wireless connectivity
• Advanced 4x4:4 radio architecture
• BeamFlex+ adaptive antenna technology
• Supports up to 1024 concurrent users
• Maximum 2400 Mbps on 5 GHz band
• Maximum 1148 Mbps on 2.4 GHz band
• 2.5GbE high-speed network port
• PoE+ support for simplified deployment
• Cloud-managed Unleashed platform
• Optimized for ultra-high-density wireless environments
• Intelligent RF optimization with 4000+ antenna patterns

Specifications:

• Product Type: Radio Access Point
• Model: RUCKUS R750 Unleashed
• Wi-Fi Standard: Wi-Fi 6 (802.11ax)
• Deployment Type: Indoor
• Management Platform: Cloud-managed Unleashed
• Form Factor: External

Supported Wireless Standards

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac
• IEEE 802.11ax

Frequency Bands

• 2.4 GHz
• 5 GHz

Performance

• Maximum Data Rate (2.4 GHz): 1148 Mbps
• Maximum Data Rate (5 GHz): 2400 Mbps

Capacity

• Concurrent Users: 1024
• SSIDs per Radio: 31
• Aerial Patterns per Band: 4000+
• Rx Sensitivity (2.4 / 5 GHz): -102 dBm

Connectivity & Power

• 2-Port Network Design
• 2.5GbE Port Included
• Power over Ethernet: PoE+ Supported

Physical Dimensions

• Dimensions (W × D × H): 20.6 × 23.5 × 6.2 cm
• Weight: 1.01 kg
