Atdec ADWS-1FP-100-W Fixed Wall Mount for Ultra Heavy Displays. Max Load: 165kg. VESA 900x800. 10 YR WTY

Manufacturer: Atdec

Availability: 8 in stock

SKU: ADWS-1FP-100-W

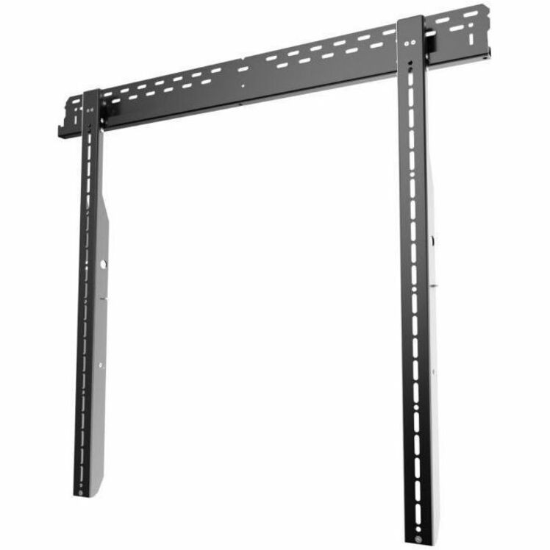

ADWS-1FP-100-W is a super heavy duty single display wall mount with low profile. It holds displays in a fixed position parallel to the wall.

This is a preconfigured modular mount built with Atdec's Universal Video Wall system of products. Features include post-installation horizontal adjustment and screen levelling for fast confident deployment.

Choose me for:

Very large displays
Heavy touchscreens
Future expansion to a video wall

Technical specifications:

Displays to 165kg (364lb)
Low profile to wall:
- 43mm, or 60mm with spacer
- 1.69", or 2.37" with spacer
VESA & universal mounting pattern:
- 200 to 900 wide
- 200 to 800 high
Adjustment after display installation:
- Vertical levelling +/-5mm (0.2")
- Horizontal adjustment on rail
Simple hook-on installation
Struts to wedge installed displays angled out from wall;
- Safe technician access
- Easier cabling & service
Accommodates security padlock & wire
Steel material
10 Year warranty

Solution includes:

1 x TH-VWP-100 mounting rail

1 x TH-VWVP wall brackets (set of two)

Product Information

Product code: ADWS-1FP-100-W
Material: Aluminium & steel
Colour: Black
