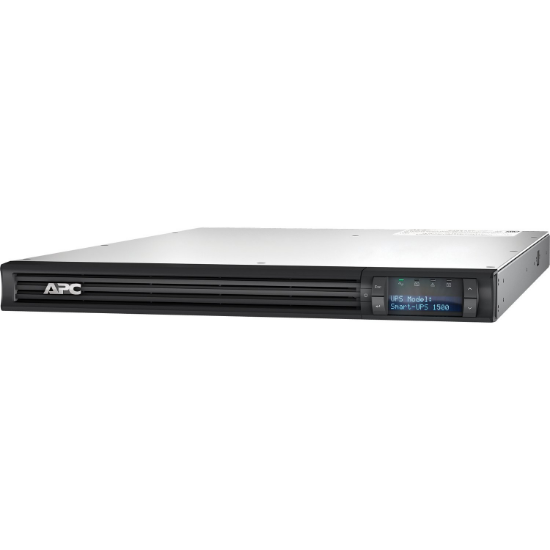

APC Smart-UPS 1500VA 1U Rack-Mount – 1000W | LCD | 6 Outlets | 540J Surge Protection | USB, Serial & RJ-45 | Hot-Swappable Battery | Black

Get enterprise-grade power protection with the APC Smart-UPS 1500VA LCD 1U Rack-Mount, delivering 1000W of pure sine wave output in a slim 1U form factor. Ideal for servers, networking gear, and data center racks, this UPS ensures uninterrupted performance during power disturbances with fast surge, spike, and lightning protection rated up to 540 joules.

With 6 total outlets (including 4 x IEC C13 and 2 x IEC jumper), this UPS supports your core infrastructure, and the 2.44m power cord offers installation flexibility. It features hot-swappable, sealed lead-acid batteries, providing 5 minutes runtime at full load and up to 17 minutes at half load, with recharge in 4 hours. Smart monitoring is built-in with USB, serial (RS-232), and RJ-45 interfaces, plus audible alarms and configurable delay settings.

Key Features:

• Capacity: 1500VA / 1000W

• Form Factor: 1U Rack-Mount

• Input Voltage: 230V AC

• Output Voltage: 230V AC

• Input Current: 12A

• Waveform Type: Pure Sine Wave

• Surge Protection Rating: 540 Joules

• Cord Length: 2.44 meters

Outlet Configuration:

• 4 x IEC 60320 C13

• 2 x IEC Jumper Ports

• Total Battery/Surge Outlets: 6

Battery Information:

• Battery Type: Maintenance-free, sealed lead-acid

• Hot Swappable: Yes

• Runtime at Full Load: 5 minutes

• Runtime at Half Load: 17 minutes

• Recharge Time: 4 hours

Connectivity:

• USB Port

• Serial Port (RS-232)

• RJ-45 Network Port

• 1 Expansion Slot

Physical Specifications:

• Color: Black

• Height: 44 mm

• Width: 432 mm

• Depth: 665 mm

• Weight: Approx. 24.09 kg

• Mounting: Front-mounted, lower preference, 1U rack-compatible

Package Contents:

• APC Smart-UPS 1500VA LCD RM 1U 230VCD

• USB & Serial RS-232 Cable

• Installation Guide

• Documentation CD

• Warranty Card

• Smart UPS Signaling Cable

• Rack Mounting Support Rails

Certifications & Sustainability:

• Certifications: UL 1449

• RoHS & REACH Compliant

• Mercury Free

• Product Take-Back Program

• WEEE Compliant

Ideal For:
Enterprise servers, edge computing environments, small data centers, and critical network systems requiring compact, intelligent backup power.
